A Comprehensive Guide to Cobalt Processing Equipment

Cobalt, a critical metal with a wide range of applications, particularly in the production of lithium-ion batteries and superalloys, has seen a surge in demand in recent years. The processing of cobalt is a complex and intricate process that requires specialized equipment to ensure efficiency and safety. This guide provides an in-depth look at the cobalt processing equipment, from the initial stages of extraction to the final stages of refining.

Cobalt processing involves several steps, including mining, crushing, grinding, flotation, leaching, solvent extraction, and electro-winning. Each stage requires specific equipment designed to handle the unique challenges of cobalt extraction and purification.

The first step in cobalt processing is mining, where the ore is extracted from the earth. The type of mining equipment used depends on the depth of the deposit and the nature of the ore. Common cobalt mining equipment includes:

• Excavators: These are used to remove overburden and expose the cobalt ore.

• Drills: Rotary drills are used to bore into the earth and extract the ore.

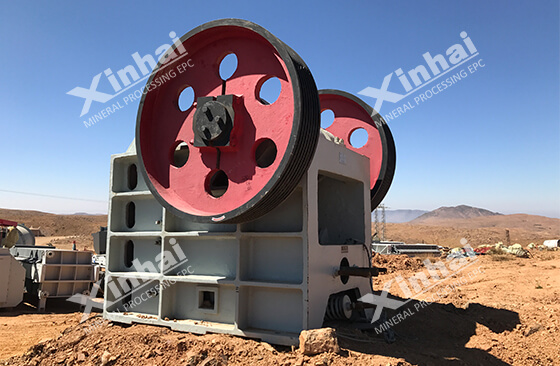

• Crushing Equipment: Once the ore is mined, it is crushed into smaller pieces using jaw crushers, gyratory crushers, or impact crushers.

After crushing, the ore is further reduced in size through grinding. This process increases the surface area of the ore, making it more amenable to the subsequent flotation process. Grinding equipment includes:

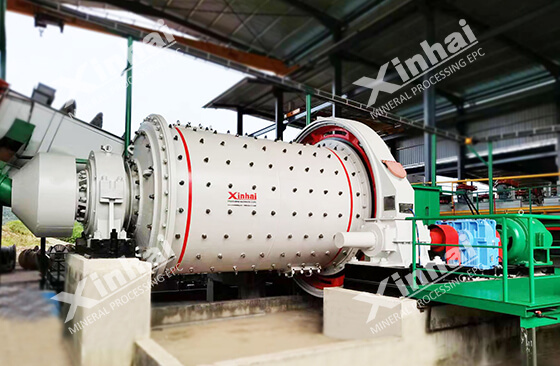

• Ball Mills: These are the most common type of grinding equipment, using a rotating drum filled with grinding media (usually steel balls) to crush the ore.

• SAG Mills: Semi-autogenous grinding (SAG) mills use larger rocks and steel balls to grind the ore, and are particularly useful for hard ores.

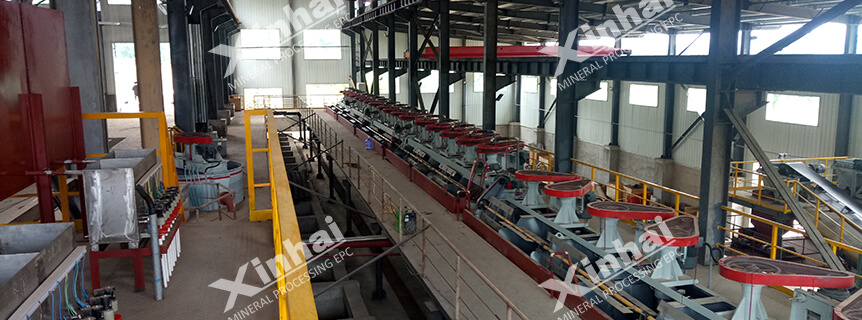

Flotation is a critical step in the cobalt processing flowsheet, where valuable minerals are separated from the waste rock (gangue). The equipment used in this stage includes:

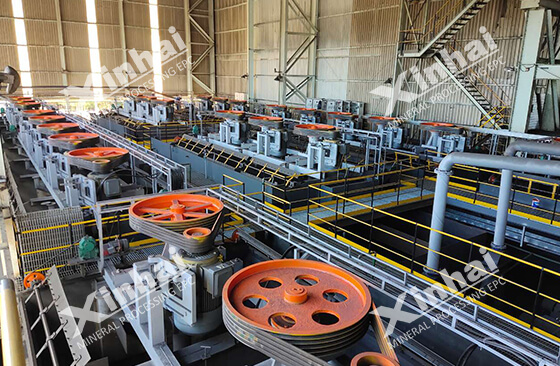

• Flotation Cells: These cells agitate the mixture of ore and water, introducing air to create bubbles that carry the mineral particles to the surface.

• Pump and Impeller: These are used to circulate the pulp and introduce air into the flotation cells.

Leaching is the process of extracting the cobalt from the ore by dissolving it in a suitable solvent. This is typically done using a chemical solution, such as sulfuric acid. The equipment used in leaching includes:

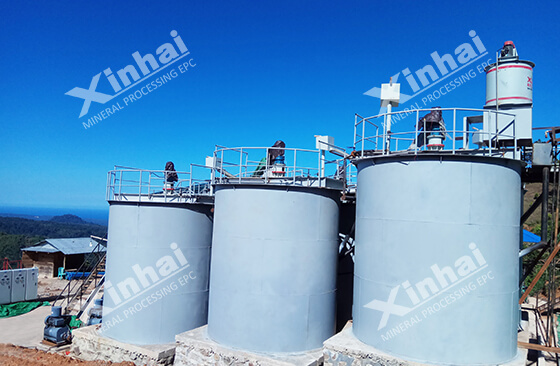

• Leaching Tanks: These tanks are where the chemical reaction takes place, and they come in various designs, including agitated tanks and heap leach pads.

• Pumps: These are used to circulate the leaching solution through the ore.

Once the cobalt has been leached into solution, it is separated from other metals using solvent extraction. This process involves the use of organic solvents that selectively extract cobalt from the leachate. The key equipment in this stage includes:

• Extractor Vessels: These are designed to mix the leachate with the organic solvent, allowing for the selective extraction of cobalt.

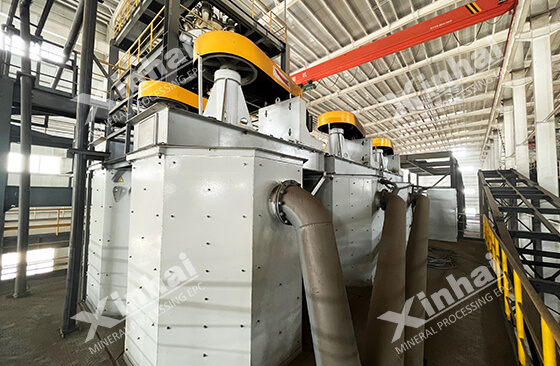

• Scrubbers: These are used to remove any impurities from the organic phase before it is sent to the stripping circuit.

Stripping is the process of recovering the cobalt from the organic solvent. This is typically done using a counter-current system where the cobalt is stripped into a concentrated solution. The equipment used includes:

• Stripper Columns: These columns are filled with packing material to provide a large surface area for the stripping reaction to occur.

• Evaporators: These are used to concentrate the cobalt solution after stripping.

The final step in cobalt processing is electro-winning, where cobalt is deposited onto cathodes from the electrolyte solution. This process requires the use of:

• Electro-winning Cells: These cells consist of a cathode (where cobalt is deposited), an anode, and an electrolyte solution.

• Power Supply: A direct current is applied to the cell to facilitate the deposition of cobalt.

Throughout the cobalt processing equipment, safety and environmental considerations are paramount. This includes the use of personal protective equipment (PPE) for workers, proper ventilation in enclosed spaces, and the implementation of waste management strategies to minimize the environmental impact.

Cobalt processing is a complex and multi-stage process that requires a range of specialized equipment. From the initial mining and crushing stages to the final electro-winning, each piece of equipment plays a crucial role in the efficient and safe extraction and purification of cobalt. As demand for cobalt continues to rise, particularly in the energy storage sector, the importance of understanding and investing in advanced cobalt processing equipment cannot be overstated.

This guide provides a comprehensive overview of the equipment used in cobalt processing, highlighting the importance of each stage and the equipment involved. It also touches on the critical aspects of safety and environmental considerations that are integral to the process. With the growing demand for cobalt, especially in the technology sector, understanding the intricacies of cobalt processing is essential for industry professionals and stakeholders alike.
