Step-by-Step Chrome Mining Process Explained

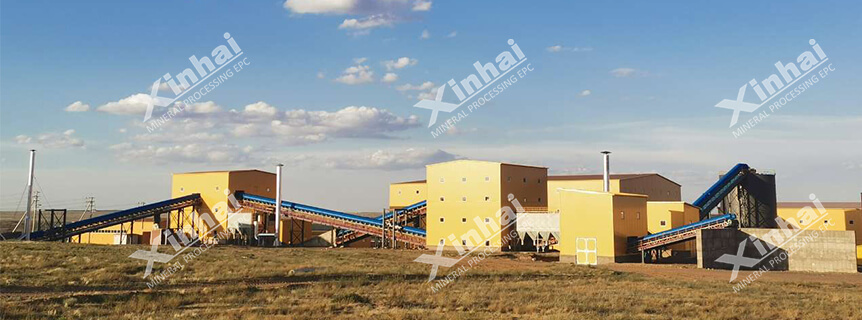

Extraction of chrome from raw ores

Chrome mining is the process of extracting chromite ore (FeCr₂O₄), the primary source of chromium, from the earth. The steps involved in chrome mining typically follow this general sequence:

   1. Purpose: Identify chromite deposits through geological surveys, sampling, and mapping.

   2. Methods:

• Use satellite imagery and geological data.

• Conduct drilling and sampling to determine ore quality and reserves.

   1. Objective: Plan efficient and safe extraction.

   2. Process:

• Develop a detailed mine plan based on deposit size, grade, and depth.

• Choose between open-pit or underground mining methods based on deposit characteristics.

• Environmental and social impact assessments are conducted.

   1. Objective: Extract chromite ore from the ground.

   2. Methods:

   2.1 Open-pit mining (for shallow deposits):

        Remove overburden (surface material covering ore).

        Drill, blast, and excavate chromite ore.

   2.2 Underground mining (for deeper deposits):

        Create shafts and tunnels.

        Use drilling and blasting techniques to extract ore.

        Transport extracted ore to the surface.

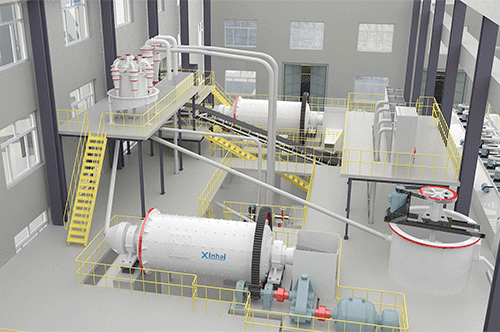

1. Crushing and Grinding

• Objective: Reduce ore size for processing.

• Process:

      Crush ore into smaller pieces using crushers.

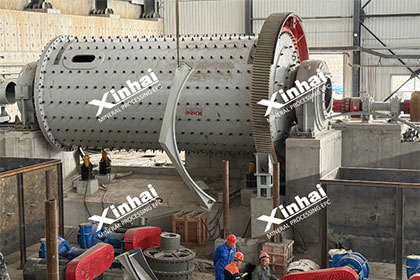

      Further grind crushed ore into fine particles using grinding mills.

2. Screening: Separate finer materials.

3. Concentration

• Objective: Separate chromite from waste material (gangue).

• Techniques:

1. Gravity separation: Use water and gravity to separate chromite, which has a higher density than gangue.

2. Magnetic separation: Remove magnetically susceptible materials from the ore.

3. Flotation: A chemical process that separates chromite from other minerals based on surface properties.

• Objective: Manage waste materials.

• Process:

      Tailings (leftover material after processing) are stored in tailings dams or repurposed for land reclamation.

      Efforts are made to minimize environmental impact.

Throughout the process:

• Compliance with environmental regulations and safety standards is crucial.

• Measures include dust suppression, water management, and safe disposal of waste.

Each step of the chrome mining process requires proper planning, advanced technology, and adherence to environmental and safety standards to ensure efficient and sustainable operations. Let me know if you'd like to delve deeper into any specific step!
