What's the Difference between CIP and CIL?

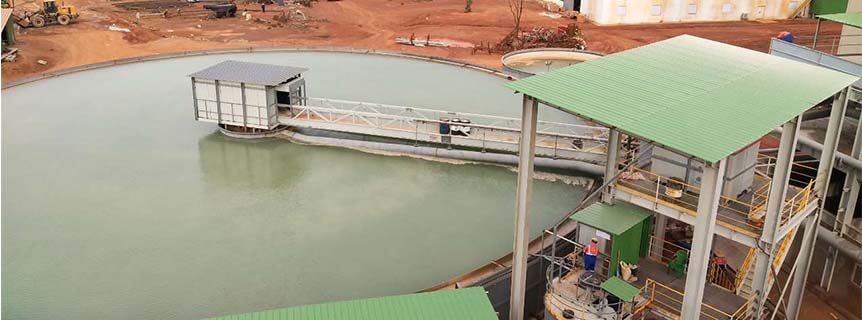

Guinea 6000 tons gold processing plant site

In the world of gold processing, two prominent methods for extracting gold from ore are CIP (Carbon in Pulp) and CIL (Carbon in Leach). Both techniques have been widely adopted in the mining industry, but they differ in their processes, efficiencies, and applications. Understanding the distinctions between CIP and CIL is essential for mining operators, investors, and anyone interested in gold recovery methods. This article will explore the differences, advantages, and ideal applications of each method.

1. What Is CIP?

CIP, or Carbon in Pulp, is a gold recovery process that involves two main stages: leaching and adsorption. The process begins with the leaching of gold from ore using a cyanide solution. After the gold is dissolved, the solution is treated with activated carbon to adsorb the gold-cyanide complex. Here's a breakdown of the key steps in the CIP process:

1). Crushing and Grinding: The ore is crushed and ground into a fine powder to increase the surface area for gold extraction.

2). Leaching: The ground ore is mixed with a cyanide solution in large tanks. The cyanide dissolves the gold, forming a gold-cyanide complex.

3) Adsorption: After leaching, the gold-cyanide solution is passed through tanks containing activated carbon, which adsorbs the gold from the solution.

(Welcome to learn more about gold CIP process)

2. What Is CIL?

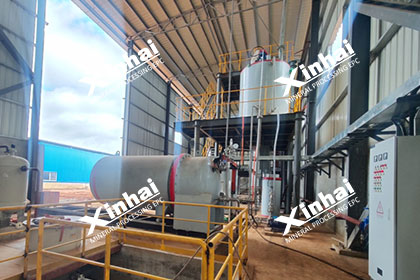

CIL, or Carbon in Leach, combines the leaching and adsorption processes into a single step. In CIL, activated carbon is added directly to the leaching tanks, allowing for simultaneous gold dissolution and adsorption. Here's how the CIL process works:

1). Crushing and Grinding: Similar to CIP, the ore is crushed and ground into a fine powder.

2). Leaching with Carbon Addition: The ground ore is mixed with a cyanide solution, and activated carbon is added simultaneously to the leaching tanks.

3). Gold Adsorption: As the gold is dissolved, it immediately adsorbs onto the activated carbon, which is in contact with the slurry.

(Welcome to learn more about gold CIL process)

1. Process Sequence

CIP: Involves two distinct stages—leaching followed by adsorption. The gold is first dissolved in the cyanide solution, and then the solution is treated with activated carbon.

CIL: Combines leaching and adsorption into one step, allowing for continuous recovery of gold during the leaching process.

2. Carbon Addition Timing

CIP: Activated carbon is added after the leaching process is complete, which can lead to delays in gold recovery.

CIL: Activated carbon is added during the leaching process, allowing for immediate adsorption of gold as it dissolves.

3. Gold Recovery Efficiency

CIP: While CIP can achieve high recovery rates, the separation of leaching and adsorption may result in lower overall recovery, particularly with fine gold particles.

CIL: CIL typically offers higher recovery rates since the carbon is in contact with the gold during leaching, enhancing the adsorption process.

4. Operational Complexity

CIP: The two-step process may require more equipment and careful management, making it slightly more complex.

CIL: The combined process simplifies operations, potentially requiring less equipment and reducing the footprint of the processing plant.

5. Cost Implications

CIP: May incur higher operational costs due to the additional equipment and stages involved in the process.

CIL: Often more cost-effective as it streamlines the recovery process, reducing the need for extra equipment and chemicals.

While CIL has many advantages, CIP also offers benefits that make it suitable for certain applications:

1. Simplicity in Design: CIP may be easier to design for certain ore types that do not require immediate adsorption.

2. Flexibility: In some cases, CIP can be more adaptable to different ore types and processing conditions.

CIL has become increasingly popular due to its numerous advantages:

1. Higher Gold Recovery Rates: The simultaneous leaching and adsorption process typically results in higher recovery rates, especially for fine gold particles.

2. Cost-Effectiveness: CIL can reduce operational costs by minimizing the use of chemicals and equipment.

3. Improved Efficiency: The continuous process allows for quicker recovery of gold from ore, leading to faster processing times.

When deciding between CIP and CIL, several factors should be considered:

1. Ore Type: The nature of the ore being processed can influence the choice of method. CIL is often favored for ores with fine gold or complex mineralogy.

2. Recovery Goals: If maximizing gold recovery is a primary goal, CIL may be the better option due to its higher efficiency.

3. Operational Costs: Consideration of the overall costs associated with each method, including equipment, chemicals, and labor, can impact the decision.

Both CIP and CIL are effective methods for gold extraction, each with its own unique advantages and applications. Understanding the differences between these two processes is crucial for mining operators and investors looking to optimize gold recovery.

CIL's ability to combine leaching and adsorption in one step offers significant benefits in terms of efficiency and cost-effectiveness. However, CIP remains a viable option for specific scenarios where its simplicity and flexibility can be advantageous.

By evaluating the characteristics of the ore and the goals of the operation, mining professionals can make informed decisions on whether to employ CIP or CIL for their gold processing needs. Ultimately, the right choice can lead to increased profitability and sustainable mining practices in an ever-evolving industry.
