Shaking Table in Mining: From Ore to Concentrate in Steps

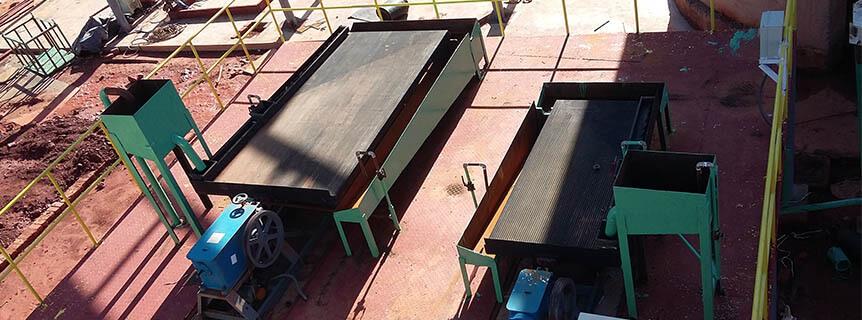

Shaking tables before operation

The shaking table is a crucial tool in the mining industry, especially for the separation and concentration of valuable minerals from ore. This article will take you through the process of how a shaking table works, detailing each step from raw ore to concentrated minerals.

A shaking table, also known as a concentrator table, is a gravity separation device that uses a shaking motion to separate particles based on their density. It’s commonly used to recover precious metals like gold, silver, and tin from various types of ore.

Step 1: Crushing the Ore

The first step in the process is crushing the ore to break it down into smaller, manageable pieces. This is typically done using crushers, which reduce the ore size to facilitate further processing. The crushed ore is then ready for the next step. (Know more about crusher equipment)

Step 2: Grinding the Ore

Once the ore is crushed, it needs to be ground into a fine powder. This is done using ball mills or similar grinding equipment. The goal is to liberate the valuable minerals from the surrounding waste material, allowing for effective separation later in the process. (Know more about grinding equipment)

Step 3: Preparing the Slurry

After grinding, the fine ore is mixed with water to create a slurry. This slurry helps transport the particles onto the shaking table. The ratio of ore to water is crucial; too much water can dilute the slurry, while too little can hinder the movement of particles.

Step 4: Feeding the Shaking Table

The slurry is then fed onto the shaking table. The table has a specially designed surface that enhances separation. As the slurry flows over the table, the shaking motion causes particles to move along the surface.

Step 5: Separation of Particles

The shaking motion and the inclined surface of the table enable the separation of particles based on their density. Heavier particles, such as gold or other valuable minerals, settle on the table, while lighter materials are washed away by the water flow. This step is critical for achieving high recovery rates of valuable minerals.

Step 6: Collecting the Concentrate

After the separation process, the concentrated minerals are collected from the shaking table. This concentrate contains a higher percentage of valuable minerals compared to the original ore. The waste material, or tailings, is discarded, and it typically contains lower concentrations of valuable minerals.

Step 7: Further Processing

The collected concentrate may undergo further processing to extract the valuable minerals completely. This can include additional refining steps, such as smelting or chemical treatment, depending on the type of mineral being recovered.

1. High Recovery Rates: Shaking tables are known for their efficiency in recovering fine particles, leading to higher yields of valuable minerals.

2. Cost-Effective: Once set up, they have relatively low operating costs, making them an economical choice for mineral processing.

3. Environmentally Friendly: Shaking tables do not require toxic chemicals for the separation process, making them a safer option for the environment.

The shaking table is an essential tool in the mining industry, transforming raw ore into concentrated minerals through a series of well-defined steps. From crushing and grinding to separation and collection, each stage plays a critical role in ensuring the efficient recovery of valuable resources.

Understanding the shaking table process can help mining operators optimize their operations and enhance mineral recovery. By leveraging this effective separation technique, you can maximize your yield and contribute to more sustainable mining practices.
